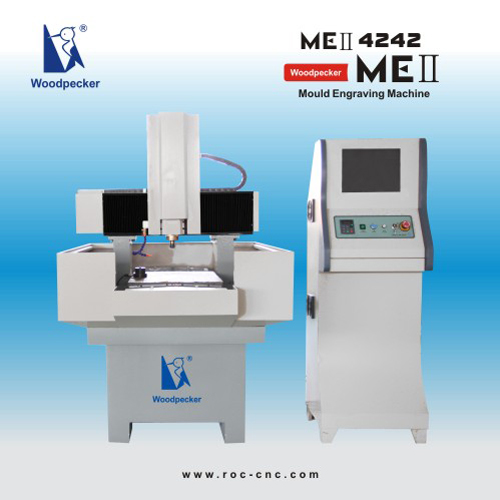

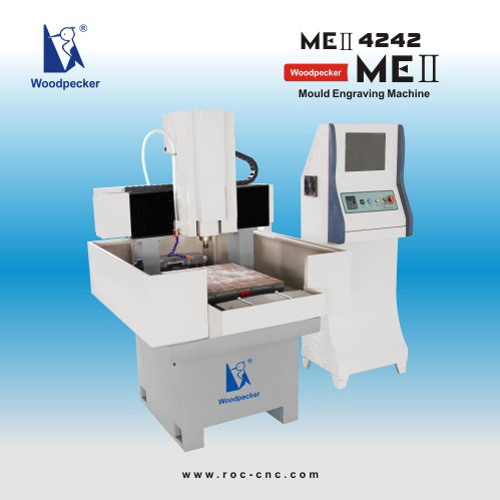

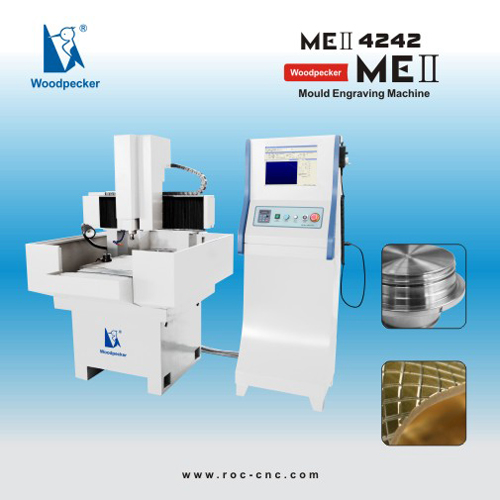

ME Mould & Die Engraving Machine

Type: MEII 4242

MEII-4242  was released in 2005 by ROC-M.E.S.E (Shanghai) Co. Ltd. The machine now uses a double column stand, cast iron built, and linear guide system. It comes with a German ball screw, high speed double CPU-CNC control system, microstep driver and a 1.5Kw spindle. This can very easily satisfy most mould cutting requirements. The hand controller is very easy to operate and allows for faster operations. Suitable for mould injections, heat transfer moulds, press moulds, and other copper and EDM moulds.

★ Double column stand.
★ Cast iron built, and linear guide system.
★ High speed double CPU-CNC control system.

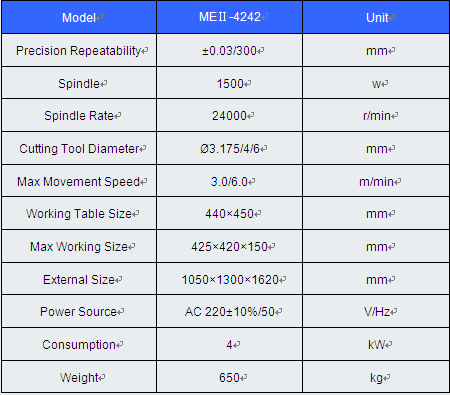

Technical Parameters

Note: Parameters are subject to change. Use our company technical standards as the basis. Final parameters to be solely determined by ROC-MESE.
