Mould & die Machines

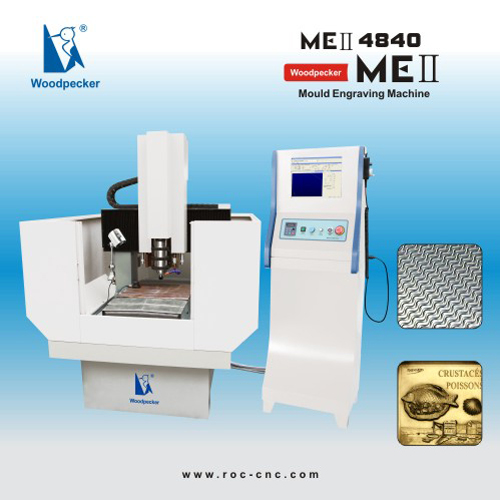

ME Mould & Die Engraving Machine

Type: MEII 4840

This machine is our latest mould making machine, released in 2008.  It is very easy to operate.  The machine is made with a double column structure, making it very sturdy. It comes with an imported ball screw, imported linear guide and imported servo system. The sturdiness and precision of the machine will satisfy the most demanding mould processes.  The Z axis uses pneumatic balancing.  It comes with a 4.5kw high frequency spindle, which ensure high cutting power.  It is suitable for injection molding and steel and copper dies.

★ Double column structure.
★ Imported servo system.

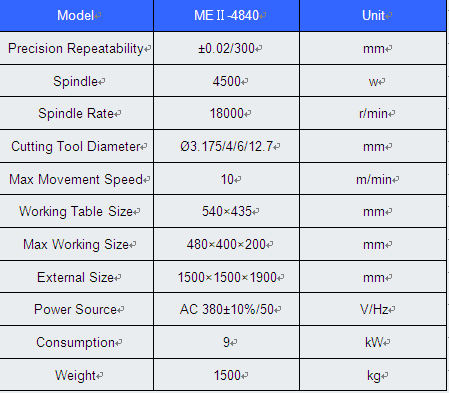

Technical Parameters



Note: Parameters are subject to change. Use our company technical standards as the basis. Final parameters to be solely determined by ROC-MESE.
